Aliases: High Temperature Fiber Optic Cable, Low Temperature Optical Fiber Cable, Fiber Optic Connector, Optical Cable Connector, Armored Fiber Optic Cable, Armored Optical Fiber Jumper
Product Overview of Seamless Steel Pipe/Tube Fiber Optic Jumpers:
OFSCN® 200℃ high temperature resistant capillary seamless steel pipe high temperature resistant fiber optic jumpers (low temperature fiber optic jumpers) are special optical cable connectors produced by Beijing Dacheng Yongsheng Technology Co., Ltd (short for DCYS) . This fiber optic jumper consists of fiber optic connectors (FC, SC, LC, ST, SMA etc.), stainless steel hose (optional), seamless steel pipe, and specialty optical fiber etc.
This type of jumpers has features such as high temperature resistance, low temperature resistance, compact size, light weight, high tensile strength, high compressive strength, corrosion resistance, fire resistance, water resistance, radiation resistance, and radiation resistance. They come in various structures, which can be multi-mode fiber optic jumpers, single-mode fiber optic jumpers, or polarization-maintaining optical fiber jumpers, and can be customized.
They can be widely used in equipment connections under high and low temperature environments, system connections in harsh industrial internet environments, equipment connections in confined spaces, and system connections in various extreme environments.
Product Structure of Seamless Steel Tube Fiber Optic Jumpers:
 |
 |
|

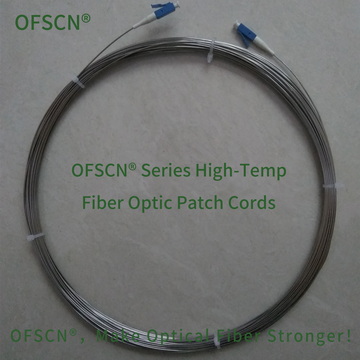

Short Distance OFSCN® High Temperature Resistant Capillary Seamless Steel Tube Fiber Optic Jumper (Flexible) |
Short Distance OFSCN® High Temperature Resistant Capillary Seamless Steel Tube Fiber Optic Jumper (Rigid) |
 |
 |
|
Long Distance OFSCN® High Temperature Resistant Capillary Seamless Steel Tube Resistant Fiber Optic Jumper (Flexible) |
Long Distance OFSCN® High Temperature Resistant Capillary Seamless Steel Tube Fiber Optic Jumper (Rigid) |
Overview of High Temperature Resistant Seamless Steel Tube Fiber Optic Jumper:
|
Brand |
OFSCN® |
|
Product name |
OFSCN® 200 ℃ High Temperature Resistant Capillary Seamless Steel Tube Fiber Optic Jumper |
|
Product number |
BNTX-SM200-FC-FC-S/H-xM (Many models are only examples) |
 |
Structure (Applicable to Rigid Structure Products): |
 |
Structure (Applicable to Rigid Structure Products): |
|
※Length range |
Several meters to several kilometers (the specific length depends on the stock and demand) |
Parameters of Optical fiber for High Temperature Resistant Fiber Optic Jumper:
 |
| Fiber Optic Type |
Optional single-mode and multi-mode fiber optics, corresponding to single-mode and multi-mode fiber optic jumpers. The reference attenuation values for single-mode optical fiber at room temperature is below: |
|
Attenuation@1310nm |
≤0.40 dB/km |
|
Attenuation@1550nm |
≤0.25 dB/km |
|
※Fiber optic optional parameters |
Various options, to be discussed directly |
Specifications of Optical Fiber Connector/Interface for High Temperature Resistant Fiber Optic Jumper:
 |
 |
|
Fiber Connector Type |
FC/APC, FC, SC, LC, ST, SMA combinations at both ends |
|
|
End Face Type |
APC |
PC |
|
Insert Material |
Ceramic |
|
|
Insertion Loss (Room Temperature/Standard Temperature) |
<0.2db |
<0.2db |
|
Return Loss (Room Temperature/Standard Temperature) |
>-60db |
>-40db |
| Storage Environment |
-40℃to+85℃ |
|
| Operating Environment |
-40℃to+85℃ |
|
|
※Optional Fiber Connector |
FC, ST optional high-temperature resistant connectors, with connector materials capable of withstanding temperatures up to 200℃ (subject to stock availability). |
|
Armor Specifications of High Temperature Resistant Seamless Steel Tube Optical Fiber Jumper:
 |
 |
|
Armor Type |
Standard Encapsulation for OFSCN® Capillary Seamless Steel Tube Fiber Optic Jumper (01、02S、02H type) |
|
Armor Diameter |
0.9mm、2.0mm / Customer-specified |
| Seamless Steel Tube Material |
316L Stainless Steel, Corrosion-Resistant Alloys, etc. |
|
Seamless Steel Tube Wall Thickness |
Conventional 0.15mm、0.18mm、0.2mm / Customer-specified |
|
Seamless Steel Tube Weight |
Calculated based on different structures. |
|
Tensile Strength |
Calculated based on different structures. |
|
Lateral Pressure Resistance |
Calculated based on different structures. |
|
Compression Strength |
Calculated based on different structures. |
|
※Armor Optional |
Corrosion-resistant solutions, etc. (subject to stock availability). |
