This product is a gold-plated fiber optic, with a coating layer made of gold that can withstand high temperatures of 700/650℃ and low temperatures down to -269℃. It is available in single-mode or multimode options, with multimode fiber core diameters of 50/62.5 microns, in step-index or graded-index configurations. The fiber core is made of silica. Gold-plated fiber optics (optical fiber) are suitable for use in various high and low temperature resistant fiber optic jumpers, optical fiber pigtails, fiber optic grating sensors, distributed optical fiber sensors, and sensing cables produced by Beijing Dacheng Yongsheng Technology Co., Ltd. (short for DCYS), which utilize a stainless seamless steel pipe structure.
Product brand is OFSCN®.
Note: The content of this information is for reference only. Due to different production batches, there may be slight deviations in the specifications.
 |
Optical Fiber type: multi-mode Structural dimensions: Fiber core/cladding/coating: 50/125/155μm |
 |
Optical Fiber type: single-mode Structural dimensions: Fiber core/cladding/coating: 9/125/155μm |
 |

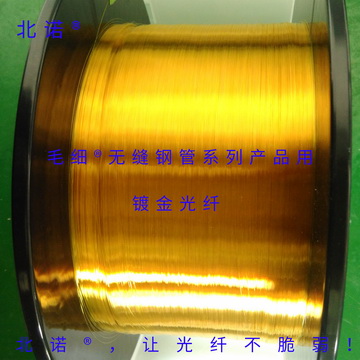

| Physical picture 1 |
Product type:
|
Product type |
Multimode gold-plated optical fiber |
Single-mode gold-plated optical fiber |
|
Product parameter |
Specification |
Specification |
|
Geometric performance |
|
|
|
Core diameter / Mode field diameter: |
50 µm ± 2% |
9.2 μm ± 0.4μm @ 1310nm 10.4 μm ± 0.5μm @ 1550nm |
|
Core irregularity |
≤ 6% |
—— |
|
Cladding diameter |
125 µm ± 2% |
125 µm +1/-3µm |
|
Core-cladding concentricity error: |
≤ 0.5 µm |
≤ 0.5 µm |
|
Cladding irregularity |
≤ 2% |
≤ 0.07 µm |
|
Coating diameter |
155 µm ± 10% |
155 µm ± 10% |
|
Coating irregularity |
≤ 6% |
≤ 6% |
|
Attenuation @ 850 nm |
≤ 10 db/km |
—— |
|
Attenuation @ 1310 nm |
≤ 8 db/km |
≤ 4 db/km |
|
Attenuation @ 1550 nm |
—— |
≤ 4 db/km |
|
Fiber screening intensity/ Fiber proof strength |
≥ 100Kpsi |
≥ 100Kpsi |
|
Fiber tensile strength |
≥ 3.3GPa |
≥ 3.3GPa |
|
Operating temperature |
-269 to +650°C |
-269 to +700°C |
|
Numerical aperture |
0.20 ± 0.02 |
—— |
| Bend radius (short-term) |
200 times fiber radius |
200 times fiber radius |
|
Bend radius (long-term) |
400 times fiber radius |
400 times fiber radius |
Figure 1：
 |

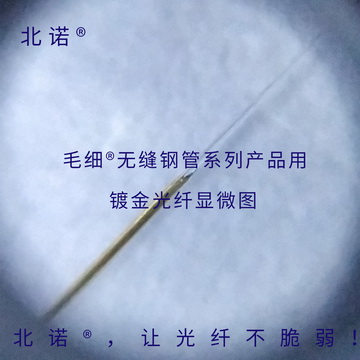

| Physical picture 2 |
Figure 2：
 |
|

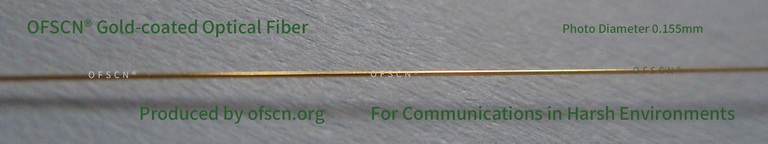

Gold-plated optical fiber with part of the coating layer removed |
