This product is a single-mode fiber optic cable that can withstand high temperatures up to 150 ℃. The coating material is modified acrylate, with options for non-carbon coated/carbon coated and doped/pure silicon core. It is suitable for Beijing Dacheng Yongsheng Technology Co., Ltd.'s high-temperature resistant fiber optic jumpers with stainless seamless steel tube structure, distributed fiber optic sensors, and stainless seamless steel tube armored optical fiber cables. It can also be used for fabricating fiber optic gratings and manufacturing fiber optic grating sensors. Product brands is OFSCN®.
Note: The content of this material is for reference only. Due to differences in selected manufacturers and production batches, there may be slight deviations in specifications.
Related products:
OFSCN® 150 ℃ Capillary Seamless Steel Tube Distributed Optical Fiber Temperature Sensor
 |
Fiber optic type: Single-mode Structural dimensions: Core/cladding/coating: 9/125/255μm |
 |
Fiber optic type: Single-mode Structural dimensions: Core/cladding/coating: 9/125/255μm Carbon sealing between the cladding and the coating layer. |
 |

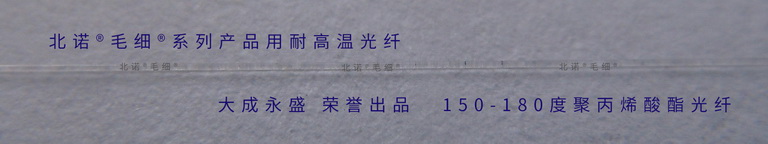

| Physical picture 1 |
 |

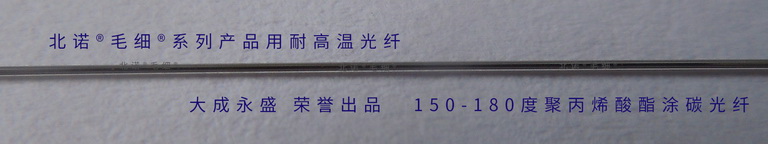

| Physical picture 2 |
Data Sheet for Single-mode Optical Fiber 9/125/245
|
Product parameter |
Specification |
|
Geometric performance |
|
|
Coating diameter |
125 ± 2.0 µm |
|
Cladding diameter |
245 ± 10 µm |
|
Whether carbon coating is applied |
Y |
|
Whether it is pure silicon |
N |
|
Mechanical properties |
|
|
Fiber tensile strength |
100 kpsi |
|
Operating temperature |
-50 to +150°C |
|
Optical properties |
|
|
Attenuation @ 1550 nm |
< 0.4 dB/km |
|
Attenuation @ 1310 nm |
< 0.5 dB/km |
|
Mode field diameter @ 1310 nm |
8.6 ± 0.4 µm |
Options: non-carbon-coated or carbon-coated, doped or pure silica core. A total of four combinations.
