Fiber Optic Vacuum Sealed Flange - KF/CF fiber optic flange - Fiber optic vacuum seal - FBG Sensor vacuum seal

Product Aliases: Fiber optic vacuum flange, Vacuum feedthrough fiber optic, Vacuum sealed fiber, Fiber optic vacuum bulkhead, UHV fiber optic feedthrough, KF fiber optic flange, CF fiber optic flange, ryogenic fiber flange, Vacuum fiber connector, Fiber optic vacuum seal, FBG Sensor vacuum seal.

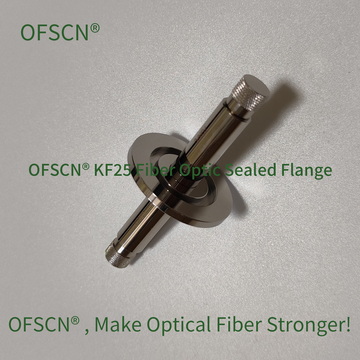

Product Overview of OFSCN® Fiber Optic Vacuum Sealed Flange：

The OFSCN® Fiber Optic Vacuum Sealed Flange is a high-performance fiber optic connection solution designed specifically for vacuum environments. It utilizes advanced sealing technology to ensure stable and reliable optical signal transmission in various high vacuum, ultra-high vacuum (UHV), and even extremely low-temperature conditions. This product is widely used in vacuum chambers, semiconductor equipment, aerospace, and cryogenic physics experiments, providing a secure connection for optical devices and components in vacuum.



Overall Parameters of OFSCN® Fiber Optic Vacuum Sealed Flange：

Parameter	Description
Product Brand	OFSCN®
Product Name	Fiber Optic Vacuum Sealed Flange
Fiber Connector Type	Standard: FC/APC Male or Female Optional: FC/PC Male or Female, ST/APC Male or Female, ST/PC Male or Female, SMA905 Male or Female

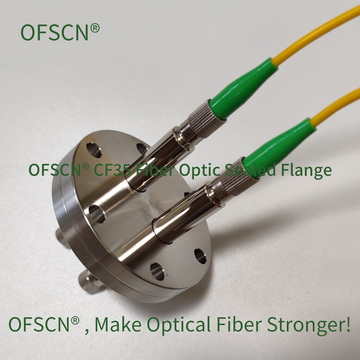

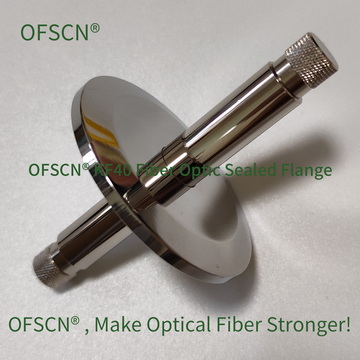

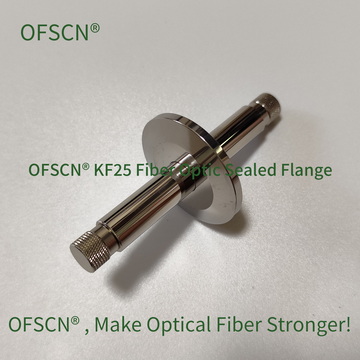

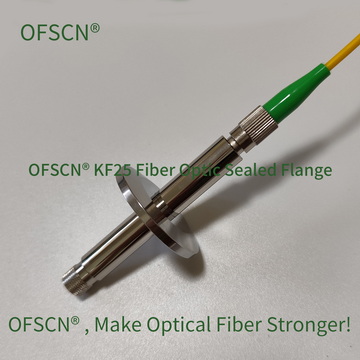

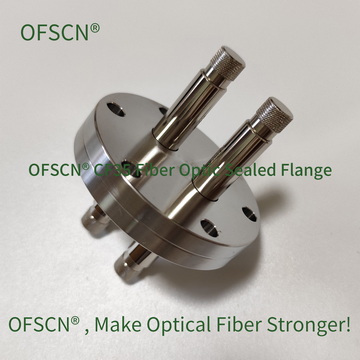

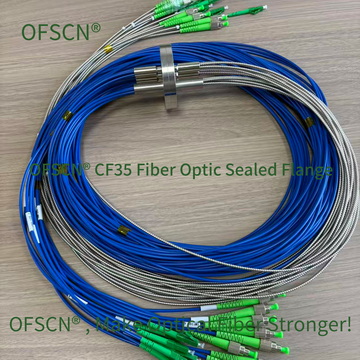

Flange Type Series	KF Series: KF16, KF25, KF40, etc. CF Series: CF16, CF25, CF35, etc.
Applicable Environment	High Vacuum (HV), Ultra-High Vacuum (UHV)
Applications	Vacuum connection for optical devices/components, vacuum sealing for fiber optic grating sensors, vacuum connection for fiber patch cords, etc.
Operating Temperature	Standard:-20℃ to 50℃ Custom: Customizable for -196℃ environments
Storage Temperature	-40℃ to 75℃
Vacuum Level	Better than 1*10-5Pa

---

Features of OFSCN® Fiber Optic Vacuum Sealed Flange：

• High Reliability Sealing: Adopts a special process to ensure leak-free performance in a vacuum environment.
• Multiple Connector Options: Supports a variety of common fiber optic connector types, including FC/APC, FC/PC, ST/APC, ST/PC, and SMA905, to meet diverse application requirements.
• Multiple Flange Series: Available in both KF and CF series flanges, with a full range of specifications for easy integration into existing vacuum systems.
• Wide Temperature Range: Standard products have a wide operating temperature range, with customizable cryogenic flanges available for liquid nitrogen environments (-196 ℃).

Possible Application Scenarios and Industries of OFSCN® Fiber Optic Vacuum Sealed Flange：

It is applicable in numerous domains and boasts diverse application scenarios.

Industry Examples of OFSCN® Fiber Optic Vacuum Sealed Flange：

• Vacuum Chambers: For introducing or extracting optical signals into or out of a vacuum chamber.
• Semiconductor Manufacturing: Used in vacuum photolithography and thin-film deposition processes for semiconductor equipment.
• Scientific Research: Optical experiments in fields like cryogenic physics, high-energy physics, and plasma research.

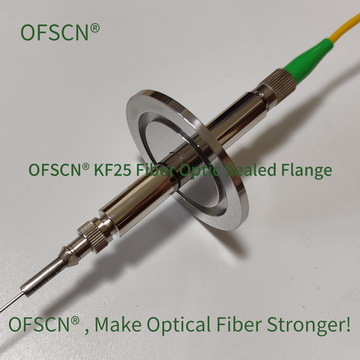

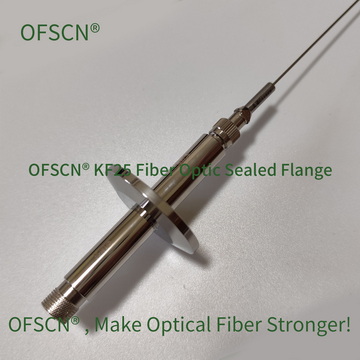

• Fiber Optic Sensing: Connecting OFSCN® fiber optic grating sensors with compatible fiber patch cords in a vacuum environment.

Ordering Information：

Please contact our sales representative with your required fiber connector type, flange type, and any special temperature needs, and we will provide you with a customized product and quote.
