Fiber Splitter - Optical Splitter - 16x32 Splitter - Fiber Bragg Grating Splitter - 8x16/4x8 Splitter

Product Aliases: Fiber Splitter / Optical Splitter, 16-in-32-out Splitter / 16x32 Splitter, FBG Splitter, Fiber Bragg Grating Splitter, Channel Expander, Passive Optical Component, FC/APC Splitter.

Product Overview of OFSCN® 16x32 Fiber Splitter (Optical Splitter) :

The OFSCN® 16x32 Fiber Splitter is a high-performance passive optical component designed to expand Fiber Bragg Grating (FBG) sensing networks. As an ideal accessory for an FBG interrogator, it evenly splits a single input optical signal into multiple output channels, effectively expanding the interrogator's physical channel capacity. When used in conjunction with the OFSCN® FBG interrogator, this splitter not only significantly increases the number of monitoring points in the sensing system but also substantially reduces the equipment cost per sensing point.

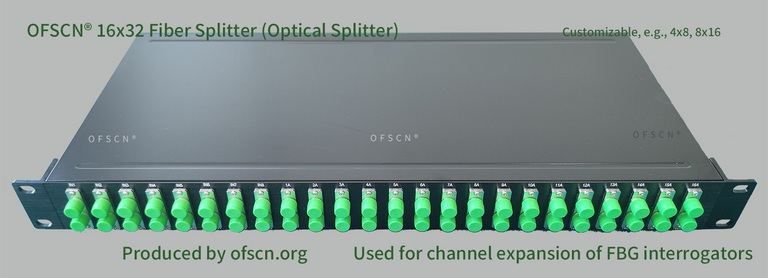

OFSCN® 16x32 Fiber Splitter (Optical Splitter) Photo

 Overall Parameters of OFSCN® 16x32 Fiber Splitter (Optical Splitter) :

Parameter	Value	Notes
Product Name	OFSCN® 16x32 Fiber Splitter (Optical Splitter)	Customizable, e.g., 4x8, 8x16
Wavelength	1260～1650nm	-
Fiber Type	G.657A1	-
Connector Type	FC/APC	-
Input Max Loss	≤0.2dB	Typical 0.06dB
Output Max Loss	≤4.2dB	Typical 3.96dB
Operating Temp.	−20℃ to 80 ℃	-
Storage Temp.	−40℃ to 85 ℃	-

---

Features of OFSCN® 16x32 Fiber Splitter (Optical Splitter):

• Broadband Design: Supports an ultra-wide operating wavelength range from 1260 to 1650nm for strong compatibility.
• Exceptional Performance: Features very low insertion loss and excellent uniformity.
• Flexible Customization: Can be customized to different configurations such as 4x8 or 8x16 to meet specific customer requirements.
• Reliable & Durable: Utilizes high-quality G.657A1 fiber and FC/APC connectors, ensuring long-term stable operation.
• Cost-Effective: Effectively expands sensing channels, reducing overall system deployment costs.

Possible Application Scenarios and Industries of OFSCN® 16x32 Fiber Splitter (Optical Splitter):

The primary purpose of this product is to expand the physical channels of a fiber optic sensing system and reduce the cost per sensing point. By splitting one interrogator channel, it enables the simultaneous connection and reading of data from multiple FBG sensors.

Industry Examples of OFSCN® 16x32 Fiber Splitter (Optical Splitter):

• Structural Health Monitoring (SHM): Monitoring strain, vibration, and temperature in bridges, tunnels, dams, and high-rise buildings.
• Power Industry: Monitoring temperature and stress on high-voltage equipment and cables.
• Oil & Gas: Monitoring pressure and temperature changes in pipelines and storage tanks to prevent leaks and accidents.
• Rail Transit: Monitoring stress, vibration, and temperature of railway tracks and roadbeds to ensure safety.
• Aerospace: Monitoring strain and temperature on aircraft structural components.
