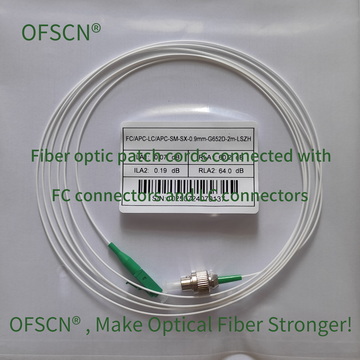

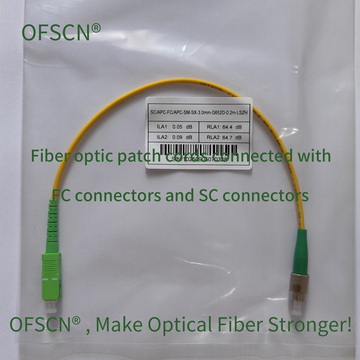

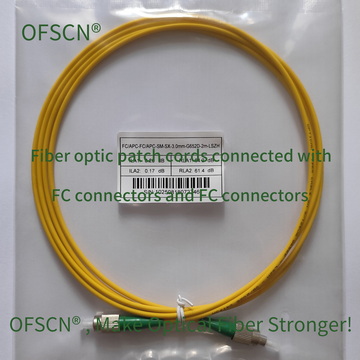

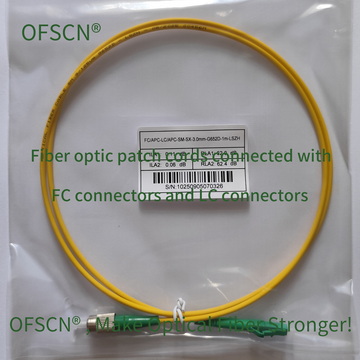

Standard Fiber Patch Cord - Conventional Optical Fiber Jumper - SM/MM/PM Patch Cord

Product Aliases: Fiber patch cord, Fiber optic cable, Fiber jumper, Optical patch cord, Fiber optic connector, Fiber pigtail, Single mode patch cord, Multimode patch cord, FC patch cord, SC patch cord, LC patch cord, ST patch cord, OFSCN fiber patch cord.

Product Functions and Uses:

• Operating Temperature: -20℃ to 50℃
• Storage Temperature: -40℃ to 75℃
• Main Applications: This product can be used for connecting various optical communication equipment and components. It is especially suitable for a stable connection between OFSCN® FBG interrogators and OFSCN® FBG sensors.

Product Overview of OFSCN® Standard Fiber Patch Cords：

The OFSCN® Standard Fiber Patch Cord is a stable and reliable fiber optic connecting product. It is manufactured with high-quality fiber and precision connectors, ensuring low insertion loss and high return loss for signal transmission. This product is widely used for connecting various optical equipment and components. It is also an ideal choice for connecting OFSCN® Fiber Bragg Grating (FBG) interrogators and OFSCN® FBG sensors.



Overall Parameters of OFSCN® Standard Fiber Patch Cords:

Parameter	Standard Configuration	Optional Configuration
Fiber Connector	FC/APC	FC/UPC, SC/APC, SC/UPC, LC/APC, LC/UPC, ST
Jacket Color	Yellow	Orange, Aqua, Magenta, Violet, Red, White, Brown, Blue, Black
Fiber Type	G.652D	G.657A, 62.5/125 OM1, 50/125 OM2, 50/125 OM3, 50/125 OM4, 50/125 OM5
Fiber Diameter	3.0mm	0.9mm, 2.0mm
Jacket Type	LSZH (Low Smoke Zero Halogen)	PVC (Polyvinyl Chloride)
Length	2 meters	Other lengths are customizable

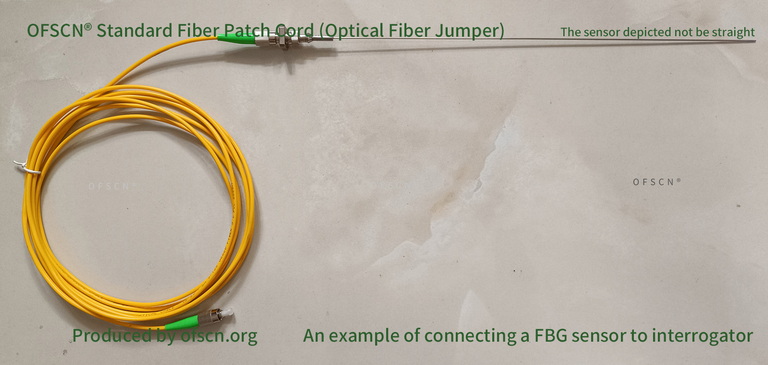

An example of a patch cord connecting a fiber Bragg grating sensor to a fiber Bragg grating interrogator
